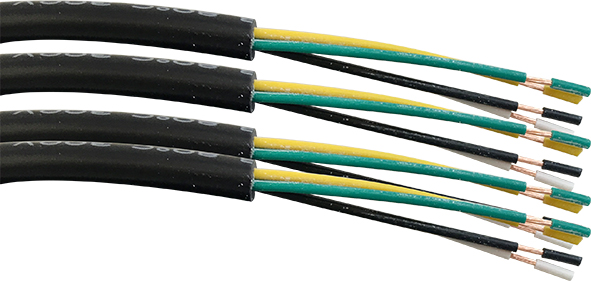

產品相冊：
特點說明（Characteristic description)
這款機器主要針對汽車行業、傳感器行業，電力行業，電控柜，電池盒的線，可把整卷電線按照所需要的長度、剝頭進行切斷剝皮，不傷到外被及導體，滾輪送線精度準有力，從而大大提高了效率。This machine is mainly for the automobile industry, the sensor industry, the electric power industry, the electric control cabinet, the battery box's line, may the entire coil electric wire according to needs the length, the peeling head carries on the cutting off peeling, does not hurt the outside to be and the conductor, the roller sends the line the precision to be accurate powerful, thus greatly enhanced the efficiency.
設備帶有升級功能，可加裝：噴碼、收線、中剝、內外剝等功能；可擴展剝雙層圓護套線，直徑8mm以內，只需更換刀架；皮帶和輪子送線，可根據具體的要求切換。
The equipment has the function of upgrading and can be equipped with functions such as: code spraying, wire receiving and medium stripping;Expandable double layer circular sheath line, within 8mm in diameter, only need to replace the tool holder;Belt and wheel wire feed can be switched according to specific requirements.
機型規格Model specification
型號Model | HC-608E3 |
外形尺寸Dimension | 650*600*475mm |
重量Weight | 90KG |
顯示方式Display | 觸屏操作，中文顯示Chinese/English display，Touch screen |
電源Power | 220V／ 850 W |
切割長度Cutting length(mm) | 0.5mm-99999.99mm，中間留皮大于 55 MM 0.5mm-99999.99mm，Leaving middle skin mor than 55 mm |
前端剝皮長度Frond end stripping length | 護套線MAX 300mm 電纜線全脫MAX 20mm Sheath cable wire MAX 300mm ;Electric cable wire MAX 20mm |
前端剝皮長度（雙層護套）Frond end stripping length（Double sheathed wire）
| 外護套25mm-300mm，芯線1-15mm Outer wire25mm-300mm，Inner wire 1-15mm |
后端剝皮長度Rear end stripping length | 護套線MAX 140 mm 電纜線全脫MAX 50 mm Sheath cable wire MAX 140 mm ;Electric cable wireMAX 50 mm |
后端剝皮長度(雙層護套）Rear end stripping length（Double sheathed wire） | 外護套25mm-140mm，芯線1-15mm Outer wire 25mm-140mm，Inner wire 1-15mm |
剝線范圍Stripping range | 最大護套線外徑可到13mm，BVR35平方 Max sheath wire diameter is up to13mm，BVR 35mm2 |
導線類型Wire material | 護套線、PVC、鐵氟龍線、玻璃線、電話線 Multicore sheathing wire、PVC、flat modular phone cable、telflon、fiberglass |
切割公差tolerance | Within 0.002 x Lmm ※ L=cutting length |
導管直徑Conduit diameter | 1-14mm |
驅動方式Driving way | 滾輪送線，八輪驅動，,獨立驅動盒驅動 Eight-wheel drive,independent drive box driver |
生產率（次／分）productivity（pcs／h） | 約 100mm/1500 PCS/h 1000mm/1100 PCS/h about 100mm/1500 PCS/h 1000mm/1100 PCS/h |
